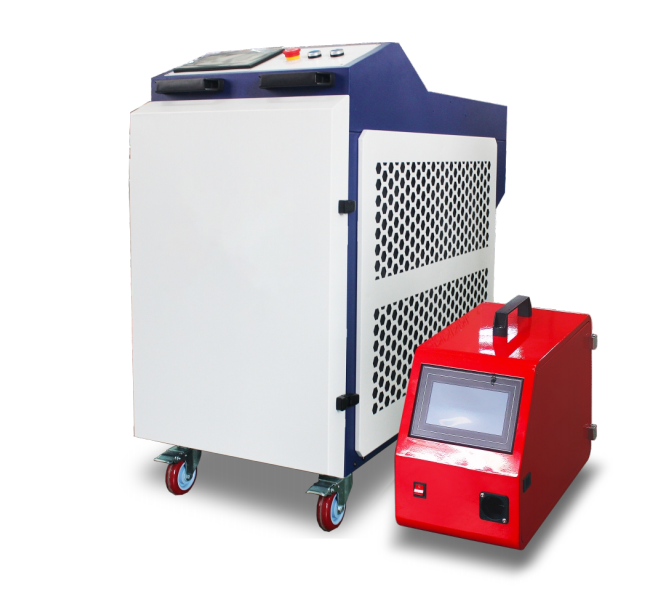

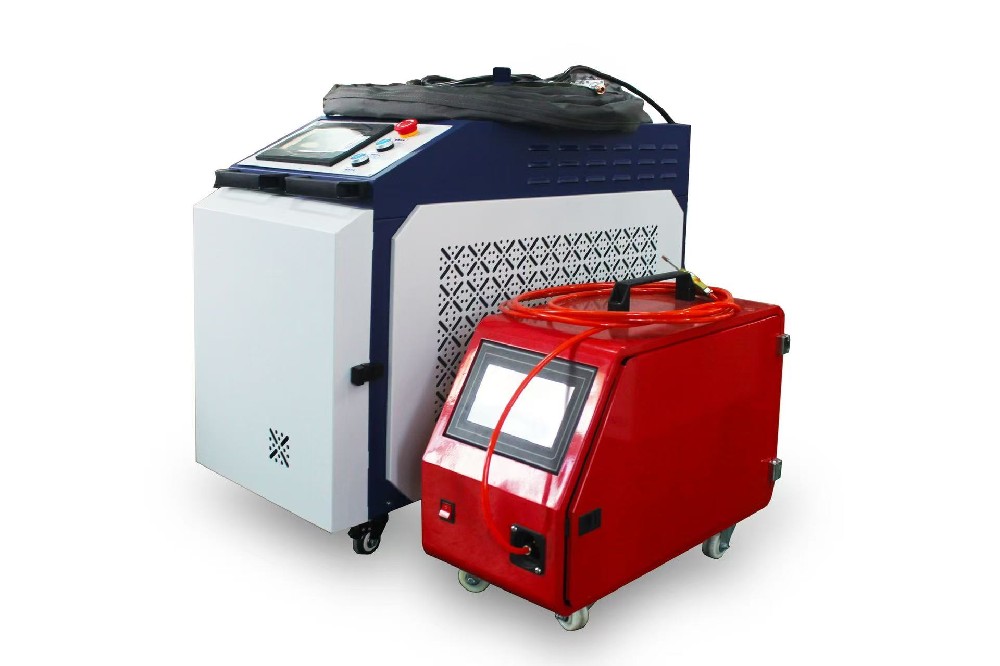

4 IN 1 3000W Handheld Laser Welding Machine

Product model：3000W

Product introductionThis handheld fiber laser welding machine is a new generation of laser welding equipment. It is a non-contact welding machine. The operation process does not require pressurization. Its working principle is to directly irradiate a high-energy intensity laser beam on the surface of the material. Through the interaction between the laser and the material, the material is melted inside, and then cooled and crystallized to form a weld. The handheld fiber laser welding machine fills the gap in handheld welding in the laser equipment industry, subverts the working mode of the traditional laser welding machine, and replaces the previous fixed optical path with a handheld machine. It is flexible and convenient, with a long welding distance, and also makes it possible to operate laser welding outdoors. It is mainly aimed at laser welding of long-distance and large workpieces, overcoming the limitations of the workbench travel space. The heat-affected area is small during welding, which will not cause deformation, blackening, or traces on the back of the workpiece. In addition, the welding depth is large, the welding is firm, and the melting is sufficient.

Technical support：

Application field：Stainless Steel Welding , Iron Welding, Galvanized Sheet Welding

Product parameter
Product name Model number Laser power Laser brand Power supply Water flow Welding thickness of stainless steel Laser wavelength Welding joint Net weight of torch Control system Spot size Cooling system Water supply requirement Need gas Consumable material Air pressure Wire feeder Support welding wire size Weight of wire feeder Size of wire feeder Net machine weight Machine size Package size Suitable welding material 4 IN 1 3000W handheld laser welding machine 3000W MH HW-3000BWT/ MH HW-3000X BWT/MAX/RAYCUS 380V±10%， 50HZ ，single-phase 1KW 12L/points 5-6mm 1080nm±3nm Super Weiye/Kirin welding system for choice 1.1KG Super Weiye/Kirin welding system for choice 0.2-3mm Water cooling Pure water Argon, or nitrogen Protective lens, brass tip 0.1 to 0.3 MPa or 1 to 3 bar distribution 0.8mm 1.0mm 1.2mm 1.6mm 18kilogram 63*33*46cm 180KG 93*56*107cm 142*79*112cm； 230KG Stainless steel, aluminum profile, carbon steel l, galvanized sheet
Product details
DESCRIPTION
This handheld fiber laser welding machine is a new generation of laser welding equipment. It is a non-contact welding machine. The operation process does not require pressurization. Its working principle is to directly irradiate a high-energy intensity laser beam on the surface of the material. Through the interaction between the laser and the material, the material is melted inside, and then cooled and crystallized to form a weld. The handheld fiber laser welding machine fills the gap in handheld welding in the laser equipment industry, subverts the working mode of the traditional laser welding machine, and replaces the previous fixed optical path with a handheld machine. It is flexible and convenient, with a long welding distance, and also makes it possible to operate laser welding outdoors. It is mainly aimed at laser welding of long-distance and large workpieces, overcoming the limitations of the workbench travel space. The heat-affected area is small during welding, which will not cause deformation, blackening, or traces on the back of the workpiece. In addition, the welding depth is large, the welding is firm, and the melting is sufficient. Not only can thermal conduction welding be achieved, but also continuous deep melting welding, spot welding, butt welding, lap welding, sealing welding, seam welding, etc. can be achieved. Hand-held welding has subverted the working mode of traditional laser welding machines. It has the advantages of simple operation, beautiful welds, fast welding speed and no consumables. It can perfectly replace traditional argon arc welding, stainless steel plates, iron plates, aluminum plates and other metal materials welding.
FEATURES
1. Wide welding range: The handheld welding head is equipped with 5m-10M original optical fiber, which overcomes the limitations of the workbench space and can be used for outdoor welding and long-distance welding;
2. Convenient and flexible to use: The handheld laser welding is equipped with a mobile pulley, which is comfortable to hold and can adjust the workstation at any time without a fixed workstation. It is free and flexible and
suitable for various working environment scenes.

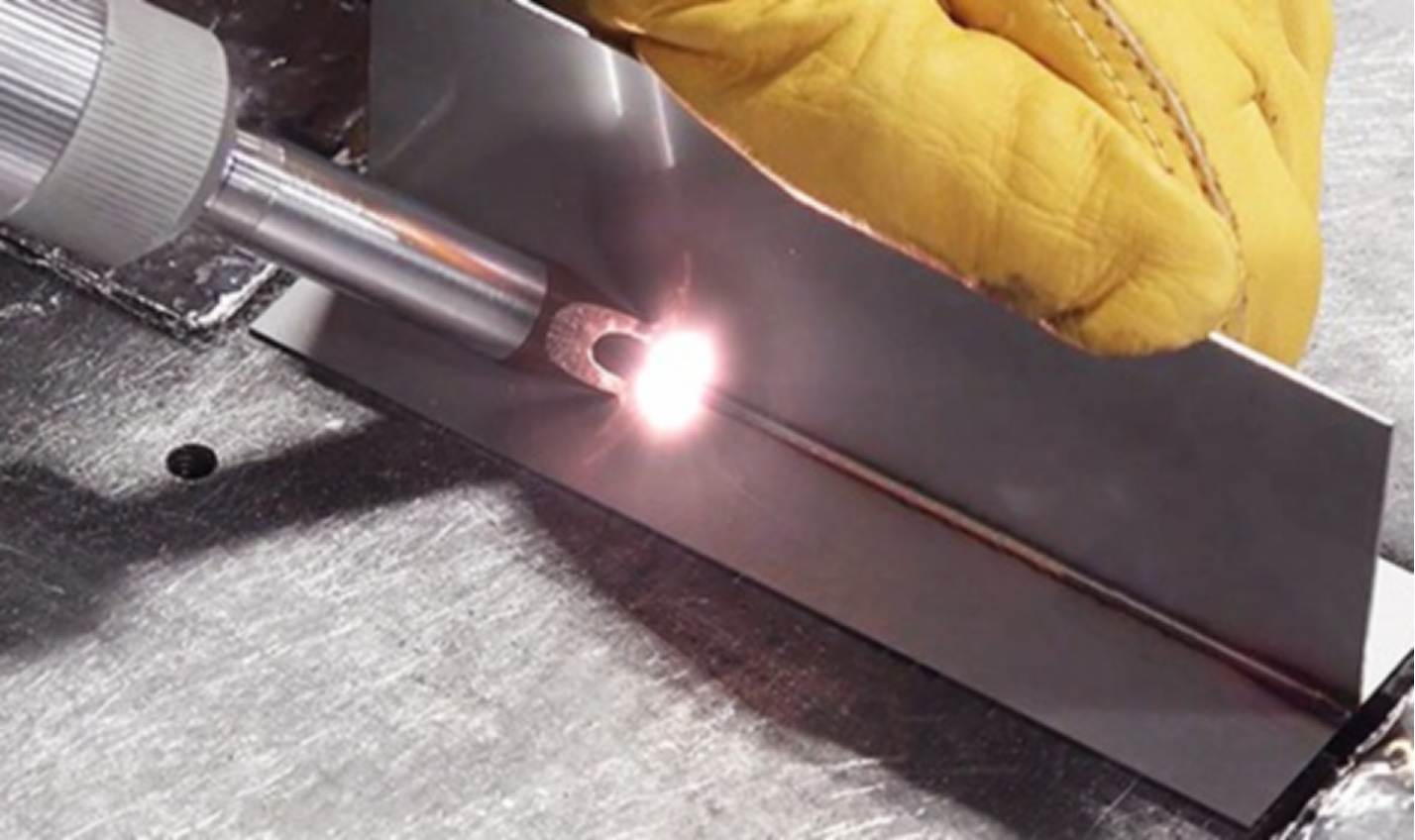

3. Multiple welding methods: It can achieve welding at any angle: lap welding, butt welding, vertical welding, flat angle welding, internal angle welding, external angle welding, etc. It can weld various workpieces with complex welds
and irregular shapes of larger workpieces.
4. It can achieve welding at any angle. In addition, it can also complete cutting, and welding and cutting can be switched freely. You only need to change the welding copper nozzle to the cutting copper nozzle, which is very convenient.
